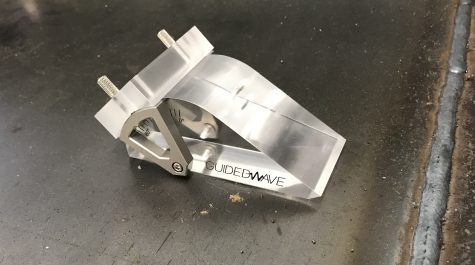

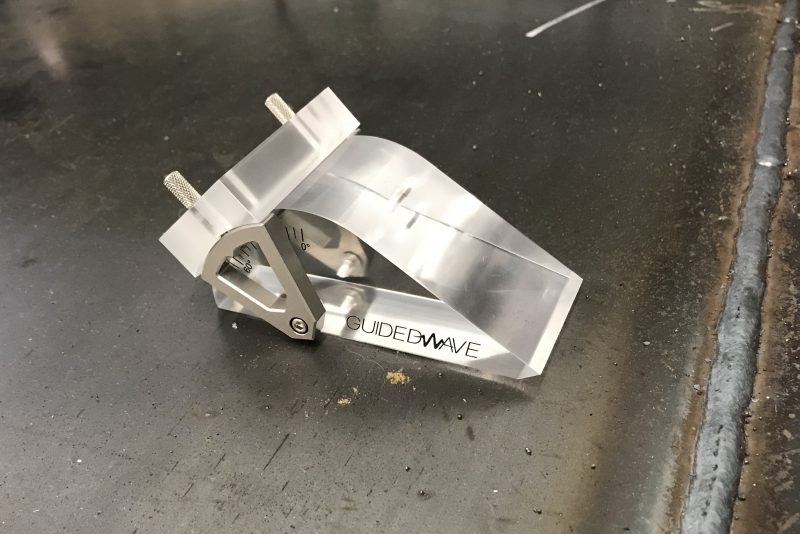

Guidedwave offers a complete range of acrylic angle beam wedges and accompanying transducers for ultrasonic guided wave applications in plates, rails, pipes, and more. Angle beam wedges take advantage of Snell’s law to control the mode and direction of guided wave excitation. Guidedwave engineers can help you in selecting the appropriate angle beam probe to meet your needs.

Available angle beam probe designs include:

• Fixed angle wedges
• Variable angle wedges
• Flat-bottom wedges for plates
• Contoured wedges for pipes, rails, and specialty application
• Accompanying transducers available across a wide range of frequencies and bandwidths
